Prime13W
4.1MP
resolution
+/- 0.10 mm
3D accuracy
180 FPS
native frame rate
250 FPS
max frame rate
Industry-leading precision. The world's most accurate large-scale 3D measurement system is built with Prime 41 technology. Primex just got better.
Activision
Call of Duty®: Modern Warfare
One of the largest OptiTrack systems ever built, with stunning visuals and captivating gameplay.
amazing range.100' passive camera-to-marker range using Signature Pulse Active3 and over 150' (including discrete infrared wavelengths) up to 290,000 cu ft/camera for passive marker tracking and 1,000,000 cu ft/camera for active marker tracking.
Primex equals precision.The in-house engineered low distortion lens and true 10-bit grayscale depth reduce quantization noise and improve precision, resulting in perfectly sharp and beautiful images, better centering and 3D accuracy.
Megapixels are important, but image quality is more important.
Intuitive and elegant design.When designing the Primex series, we considered the entire lifespan of a motion capture camera, from unboxing to setup, capture and disassembly. Each process is elegantly accommodated for simplicity and ease of use.
Position error less than +/- 0.10mm and rotation error less than 0.5 degreeTrack active and passive markers.For some tracking applications, customers may benefit from a combination of active and passive markers.
Mix and match cameras.All cameras in the Prime and Primex ranges can be used together to create the configuration that best suits your use case. 11 different cameras to choose from to deliver unparalleled 3D accuracy in any environment.

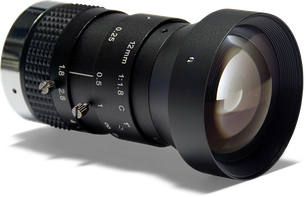

"Fast glass" 12mm lens.We custom design our own low distortion “fast glass” lenses for optimal marker tracking. Primex 41's standard 12mm lens is treated with a broadband anti-reflection coating, which greatly increases light transmittance to the imager, resulting in higher volumes and more accurate 3D data.
Powerful on-board image processing.All OptiTrack cameras feature integrated image processing. Algorithms and data delivery sequences that identify markers and marker centers are important steps towards achieving world-class accuracy and low latency.
Camera status indicator.The OptiTrack system keeps you up-to-date with customizable colored LED indicators surrounding the lens. recording a performance? Everyone knows the system is recording. Would you like to choose a camera? Color changes instantly. Do you have any ideas of your own? Simple software controls help.
New high power strobe.Ultra-high power LEDs provide enhanced coverage for all shutter settings. The world's longest range motion capture camera just got better.
Full resolution black and white reference video.Any Primex camera can be used as a reference video source with synchronized calibrated 3D overlays. Provides and/or records full resolution, full frame rate video with 3D overlays of markers, rigid bodies, skeletons, etc.
Out-of-the-box outdoor capture.Primex 41 extends the world record setting range to markers for outdoor capture. For the manual marker, the outdoor (bright sunlight, noon) range is about 50' (16m). For Signature Pulse Active technology, the range is > 70' (21 m).
Easy setup. Aim assist and easily accessible lens controls make setting up the Primex 41 quick and easy.
3 cups
Blueberries
3 cups
Flour
1 cup
Sugar
2 tbsp.
Salt
1½ cups
Butter
External sync input/output, genlock and time code.Sync your Prime and Primex cameras to any signal or source with eSync 2, with all the features and flexibility you expect from a professional tracking system. The camera synchronizes with dozens of sources, including Genlock signals from professional cameras, and recording and other event triggering can be managed with universal inputs and software commands.
Use the sync output signal as a master or trigger force plates, EMGs, and National Instruments DAQ for flexible yet precise hardware synchronization. SMTPE timecode allows for easy editing and logging with highly accurate frame timing. OptiTrack's free public SDK allows further customization within the timing protocol.
Expert system configuration for any space.OptiTrack has built over 10,000 tracking systems for areas of all shapes and sizes. Our experts will guide you to the most affordable and suitable tracking system for your current and future needs.
continuous calibrationI'm
It's more than just a camera. In addition to the essentials to get used to, you may discover several new software features. Experience innovations like Continuous Calibration, which only require a wand wave on first installation, then use the system to calibrate automatically. Calibration no longer degrades over time, when temperature changes occur, or after a camera crash.
continuous calibrationafter
2D object data
3D point construction
skeleton
rigid body
OEM and computer vision integration. Connect the Primex 13W camera to OEM tracking or computer vision applications via the free SDK, a C/C++ interface to control and access raw camera frames, image processing modes, camera settings, 2D object data, camera synchronization and all 3D data. Integrate.
